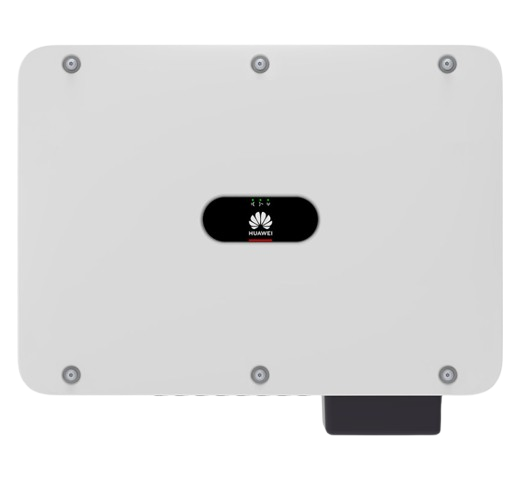

Inverter Huawei SUN2000-50KTL-M3

The Huawei SUN2000-50KTL-M3 is a 50 kW on-grid inverter designed for commercial and industrial solar PV projects. It delivers high efficiency, intelligent protection, and easy system monitoring. With Smart PV Optimizer support, the inverter helps maximize energy yield while enhancing overall system safety.

Technical Specifications

The Huawei SUN2000-50KTL-M3 features a 50,000 W AC output, equipped with 8 string inputs and 4 MPPTs, making it ideal for business and industrial-scale installations. A maximum input voltage of 1,100 V allows flexible PV array design.

Input:

• Max. Input Voltage: 1,100 V
• Max. Current per MPPT: 30 A
• Max. Current per Input: 20 A
• Max. Short Circuit Current per MPPT: 40 A
• Start Voltage: 200 V
• MPPT Operating Voltage Range: 200 V – 1,000 V
• Rated Input Voltage: 600 V
• Number of Inputs: 8
• Number of MPPT: 4

Output

• Rated AC Active Power: 50,000
• Max. AC Apparent Power: 55,000 VA
• Max. AC Active Power (cosφ = 1): 55,000 W
• Rated Output Voltage:
  • 400 Vac / 480 Vac, 3W+ (N) + PE
• AC Grid Frequency: 50 Hz / 60 Hz
• Rated Output Current: 72.2 A @ 400 Vac – 60.1 A @ 480 Vac
• Max. Output Current: 79.8 A @ 400 Vac – 66.5 A @ 480 Vac
• Adjustable Power Factor Range: 0.8 Leading – 0.8 Lagging
• Max. Total Harmonic Distortion: <3%

General Specifications

The Huawei SUN2000-50KTL-M3 is built for long-term reliability with IP66 protection, making it suitable for outdoor and semi-outdoor installations. Its Smart Air Cooling system ensures stable operation, while the transformerless design enhances efficiency and overall performance.

• Dimensions (W x H x D): 640 × 530 × 270 mm
• Weight: 49 kg (dengan mounting plate)
• Operating Temperature Range: -25°C hingga +60°C
• Cooling Method: Smart Air Cooling
• Max. Operating Altitude: 4,000 m
• Relative Humidity: 0% – 100% RH
• DC Connector: Amphenol H4
• AC Connector: Waterproof Connector + OT/DT Terminal
• Protection Degree: IP66
• Topology: Transformerless
• Nighttime Power Consumption: ≤ 5.5 W

Download Datasheet

Download the official Huawei SUN2000-50KTL-M3 datasheet for complete technical details and performance information.
