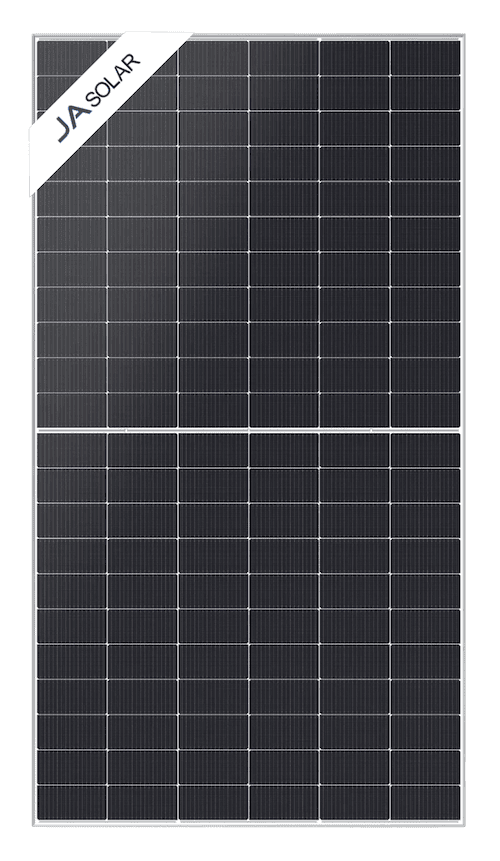

JA Solar 710 Wp JAM66D46-710/LB N-Type Bifacial

The JA Solar 710 Wp AM66D46-710/LB N-Type Bifacial module delivers high output performance supported by advanced N-Type bifacial cell technology. Engineered for superior efficiency, higher power generation, and excellent performance under both high-temperature and low-light conditions, this module is designed to help reduce Levelized Cost of Energy (LCOE) while ensuring stable long-term energy yield. With a 30-year performance warranty and a 12-year product warranty, this panel delivers reliable protection and long-term durability. It is an excellent choice for commercial, industrial, and utility-scale projects demanding reliable, high-capacity solar modules.

Electrical Parameters

The JA Solar 710 Wp AM66D46-710/LB is designed with electrical performance optimized for a wide range of operating environments. With stable voltage and current characteristics, the module maintains strong power output both at peak irradiation and during periods of reduced sunlight.

• Rated Maximum Power (Pmax): 710 W
• Open Circuit Voltage (Voc): ± 48.60 V
• Maximum Power Voltage (Vmp): ± 40.80 V
• Short Circuit Current (Isc): ± 18.51 A
• Maximum Power Current (Imp): ± 17.40 A
• Module Efficiency: ± 22.9%
• Power Tolerance: 0 ~ +3%

Mechanical Parameters

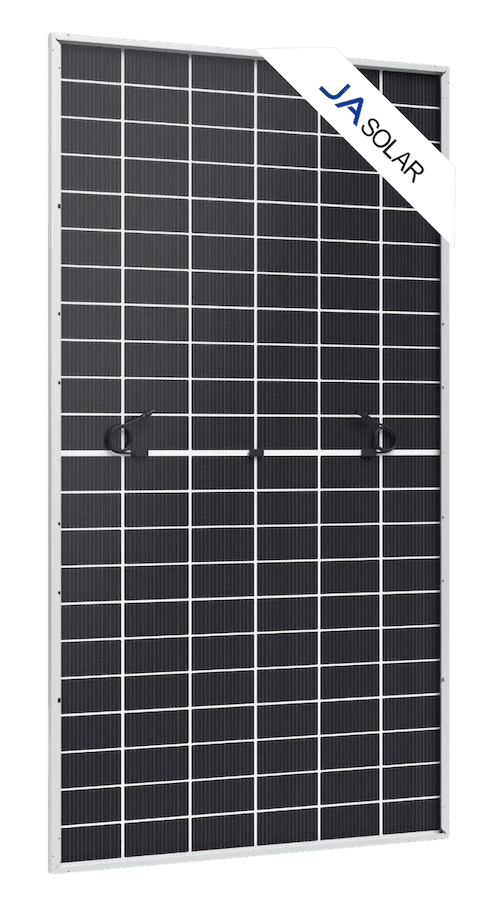

The module is built with a reinforced mechanical structure designed for long term durability and installation flexibility across different project scales. High quality materials and double glass construction allow the module to withstand harsh outdoor environments, including extreme temperatures, strong winds, and high humidity levels.

• Cell Type: Monocrystalline N-Type
• Dimensions: 2384 × 1303 × 33 mm
• Weight: 38.2 kg
• No. of Cells: 132 (6×22)
• Junction Box: IP68, 3 diodes
• Connector: Stäubli PV-KST4-EVO2A/xy, QC Solar QC4.10-35I
• Cable Length:
  • Portrait: 400 mm (+) / 200 mm (−)
  • Landscape: 1400 mm (+) / 1400 mm (−)
• Front/Back Glass: 2.0 mm / 2.0 mm
• Packaging: 33 pcs/pallet, 594 pcs/40HQ

Download Datasheet

Download the official datasheet for the JA Solar 710 Wp AM66D46-710/LB N-Type Bifacial module for full technical specifications and performance details:
