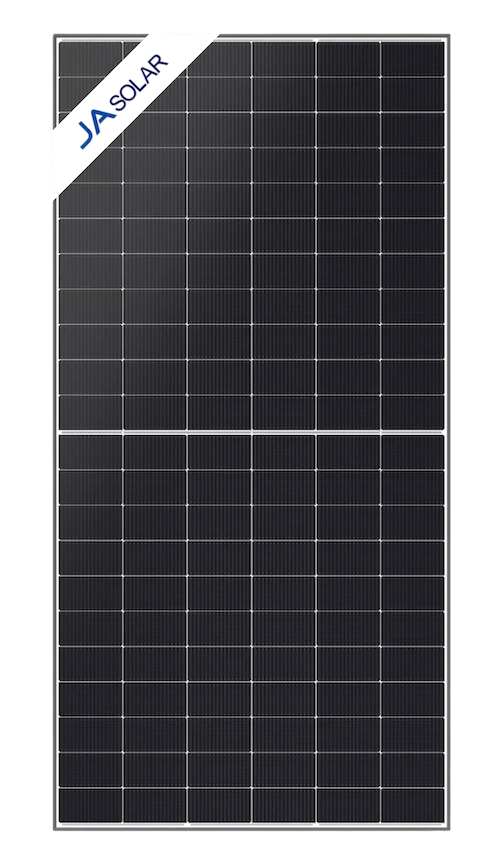

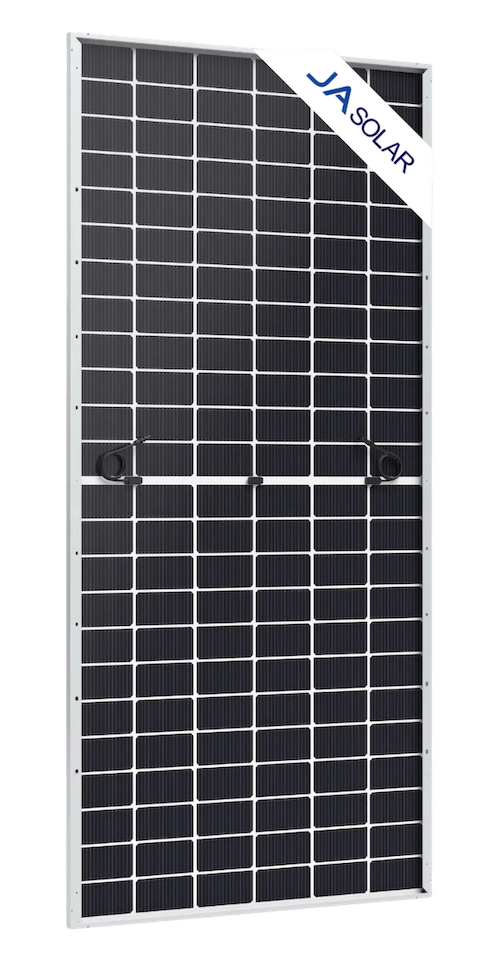

JA Solar DeepBlue 4.0 Pro JAM66D42-590/MB – Modul 590 Wp N-Type Bifacial

The JA Solar DeepBlue 4.0 Pro series delivers high performance through advanced N-type bifacial cell technology, allowing it to generate more energy, with greater stability and higher efficiency in various environmental conditions. With a 30 year performance warranty and a 12 year product warranty, this panel delivers reliable protection and long term durability. Designed with optimal efficiency and durable dual glass construction, this solar panel is an ideal choice for residential, commercial, and industrial-scale projects.

Electrical Parameters

To ensure optimal performance under various operating conditions, the JA Solar JAM66D42-590/MB is equipped with stable and efficient electrical parameters. The following specifications provide a complete overview of its power capability, current response, and operating characteristics under Standard Test Conditions (STC):

• Rated Maximum Power (Pmax): 590 W
• Open Circuit Voltage (Voc): 48.58 V
• Maximum Power Voltage (Vmp): 40.84 V
• Short Circuit Current (Isc): 15.31 A
• Maximum Power Current (Imp): 14.45 A
• Module Efficiency: 22.8%

Mechanical Parameters

Beyond excellent electrical performance, this solar module is built with a robust mechanical structure designed to withstand demanding installation environments. JA Solar uses premium materials, dual-glass construction, and certified components to ensure long-term durability and ease of installation.

• Cell Type: Mono N-Type, 132 cells (6×22)
• Weight: 31.8 kg
• Dimensions (p x l x t): 2278 × 1134 × 30 mm
• Cable Cross-Section: 4 mm² (IEC) / 12 AWG (UL)
• Junction Box: IP68, 3 bypass diodes
• Connector: QC 4.10-351 / MC4-EVO2A
• Cable Length:
  • Portrait: +300 mm / –400 mm
  • Landscape: ±1300 mm
• Front/Back Glass: 2.0 mm / 2.0 mm (dual-glass)
• Packing Configuration: 36 pcs per pallet, 720 pcs per 40HQ container

Download Datasheeet

Download the official datasheet of the JA Solar JAM66D42-590/MB module for complete technical details and performance information:
